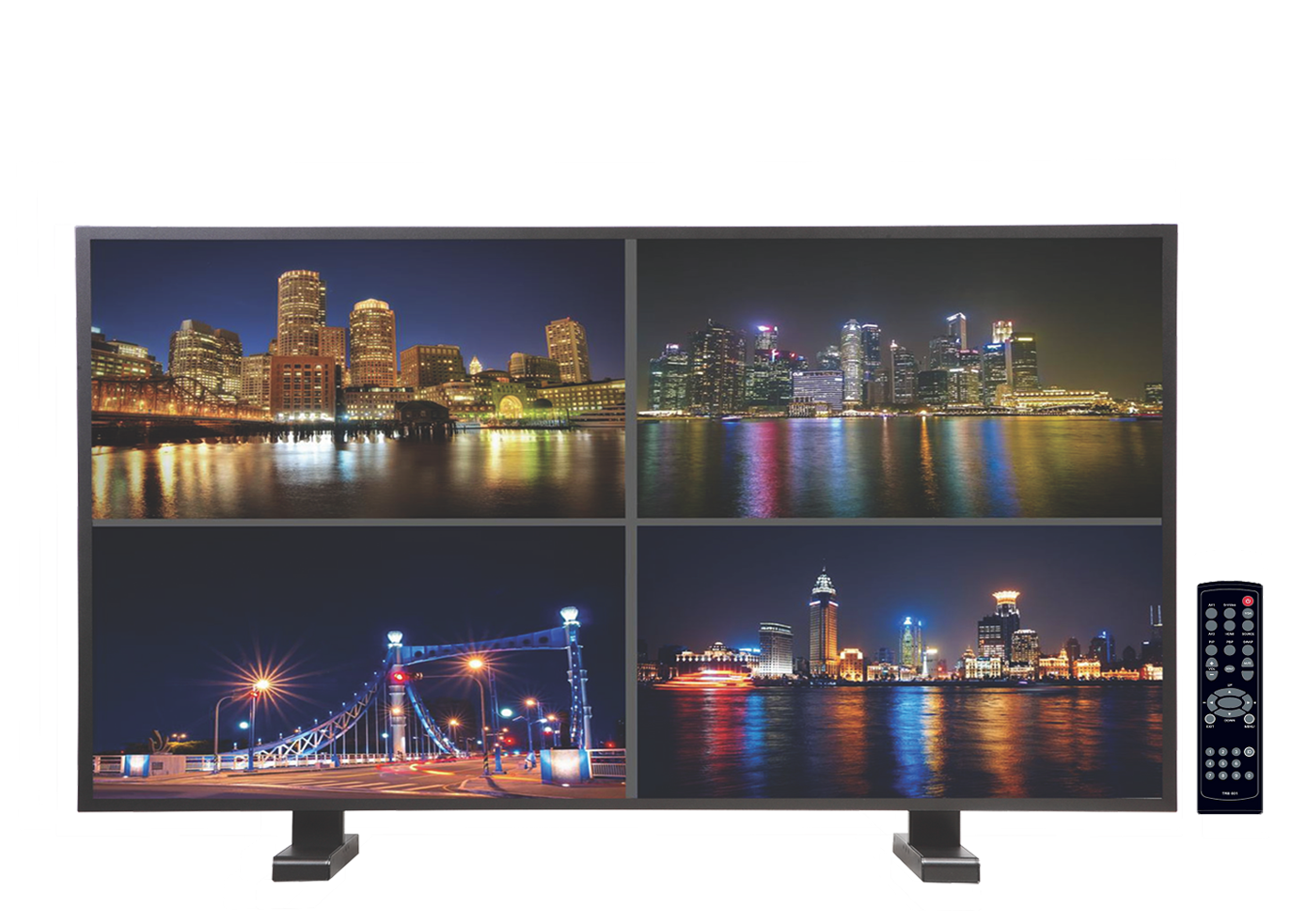

46 Inch Digital Signage LED Monitor
Model No. : TEL-46MRDS
Main Features :
◎ Professional Design for Digital Signage use
◎ Multi Signal Source Input (HDMI/DVI/VGA)
◎ Providing External Power Output
(DC5V, DC12V,USB 5V Output)
◎ Adopting LED Backlight LCD Panel
◎ 7 International languages OSD
◎ High Resolution (1920x1080)
◎ Specific Power Saving Mode
◎ ID Remote Controller
◎ Slim Bezel Design
◎ Stereo Audio
Main Features :
◎ Professional Design for Digital Signage use
◎ Multi Signal Source Input (HDMI/DVI/VGA)
◎ Providing External Power Output
(DC5V, DC12V,USB 5V Output)
◎ Adopting LED Backlight LCD Panel
◎ 7 International languages OSD
◎ High Resolution (1920x1080)
◎ Specific Power Saving Mode
◎ ID Remote Controller
◎ Slim Bezel Design
◎ Stereo Audio
Product Content
| Model No. | TEL-46MRDS |
| System | |
| Panel Size | 46” LED (LED Backlight) |
| Resolution | 1920 x 1080 |
| Pixel Pitch (H x V) | 0.53025 x 0.53025 |
| Contrast Ratio | 4000:1 |
| Luminance | 500 cd/㎡ |
| Aspect Ratio | 16:9 |
| Response Time | Grey to Grey = 6.5ms |
| View Angel | U/P: 89/89 , L/R: 89/89 |
| Video Signal | Analog RGB Signal, Composite signal 0.6~1Vpp/75 ohm, Y:1Vp-p, C:0.3Vp-p |
| Video Color System | NTSC/PAL auto detection switch |
| Scan Frequency | H:31K~81KHz, V:56~75Hz |
| Operation Interfaces | |
| Front Panel Controls | Power,Source/Exit,+/- ,Menu/Enter |
| Indicators | LED |
| OSD Control | Yes |
| OSD Language | English, French, Germany, Spanish, Tranditional Chinese Simplified Chinese, Japanese (7) |
| Input / Output Connector | |
| Input Connector | D-Sub (VGA) x 1 HDMI x 1 DVI x 1 RCA Audio (R/L) x 1 (Optional) RS-232 x 1 (Optional) Power Input (AC Socket) x 1 DC 5V Power Output x 1 DC 12V Power Output x 1 USB 5V Power Output x 1 |
| Mechanical & Electrical Design | |
| Power Saving | No enter Saving mode when no singal, auto ON when singal resumes |
| VESA Mounting | 300 x 200 mm & 400 x 200 mm |
| Front Bezel Material | Metal |
| Back Cabinet Material | Metal |
| Stand Material | Metal |
| Audio Power Output | 5W x 2 |
| Power | AC 100~240V, 50/60Hz |
| Power Consumption | 140W (Max) |
| Working Temperature | 5~+40 ℃ |
| Working Humidity | 20% ~ 85%RH |
| Unit Dimension(WxHxD) | 1050 x 605 x 85 mm |
| Packing Dimension(WxHxD) | 1180 x 760 x 205 mm |
| Net Weight | 23.5 Kg |
| Gross Weight | 27.0 Kg |
| Regulatory | CE,FCC,RoHS |
| Color | Black |
| Accessory | |
| Power Cable | 1 |
| D-Sub VGA Cable | 1 |
| Audio Cable | 1 |
| ID Remote Controller | 1 |
| User Manual (CD) | 1 |
| ※Specifications and product design are subject to change without notice. | |
