Product

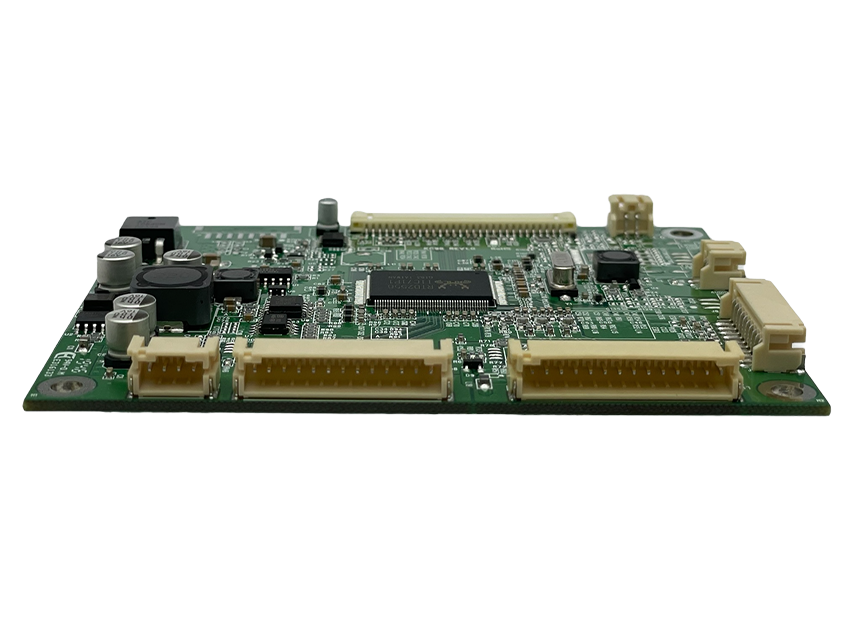

KC96
Model No.: KC96
Part No.: C96--556N00--
Main Features:
◎ Auto detection of separate Sync. Signal and composite Sync.Signal of VGA
◎ Support VGA analog standard input signal (15-pin D-Sub connectors)
◎ Support vertical refresh rate up to 75Hz for VGA~SXGA+ (1400X1050) and
60Hz for higher resolution of VESA Standard Timing
◎ Supply single pixel(24bits) or dual pixel(48bits)digital RGB output
◎ Compatible with VGA up to FHD (1920x1080) LCD panel
◎ Operating temperature : 0 °C to +50 °C
◎ Storage temperature : -40 °C to +70 °C
◎ Operating humidity : 0 ~ 80% ( Non- condensing)
◎ Storage humidity : 0 ~ 90%
◎ Support RS232 (Optional)
◎ Support HDMI input
◎ Support DVI input
◎ Audio (Phone Jack)
◎ RoHS compliant
◎ DC 12V input
Part No.: C96--556N00--
Main Features:
◎ Auto detection of separate Sync. Signal and composite Sync.Signal of VGA
◎ Support VGA analog standard input signal (15-pin D-Sub connectors)
◎ Support vertical refresh rate up to 75Hz for VGA~SXGA+ (1400X1050) and
60Hz for higher resolution of VESA Standard Timing
◎ Supply single pixel(24bits) or dual pixel(48bits)digital RGB output
◎ Compatible with VGA up to FHD (1920x1080) LCD panel
◎ Operating temperature : 0 °C to +50 °C
◎ Storage temperature : -40 °C to +70 °C
◎ Operating humidity : 0 ~ 80% ( Non- condensing)
◎ Storage humidity : 0 ~ 90%
◎ Support RS232 (Optional)
◎ Support HDMI input
◎ Support DVI input
◎ Audio (Phone Jack)
◎ RoHS compliant
◎ DC 12V input
Product Content
Specification:
Please go to "SERVICE" >"Catalogue" >"AD Board" to down load the
detail specification sheet or find the sales on "CONTACT" to get more
specification and service.

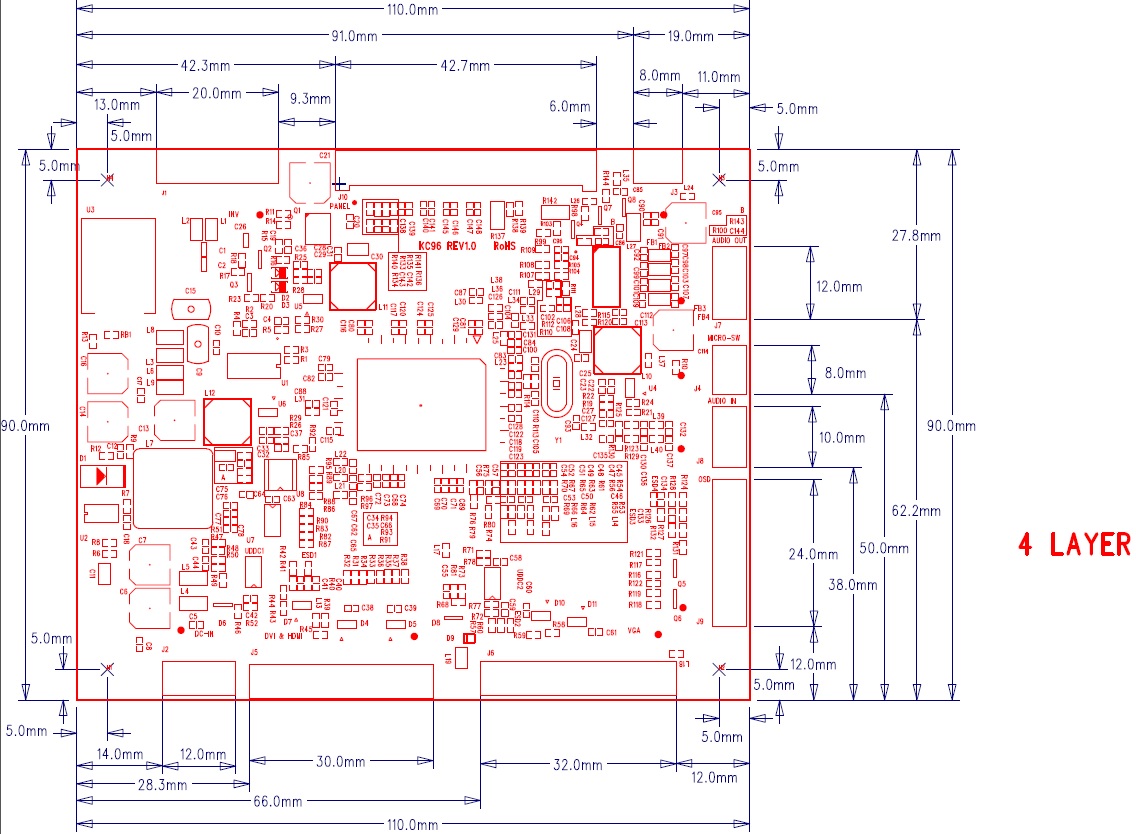

Board Dimension : 110 mm (W) x 90 mm (H)
