Product

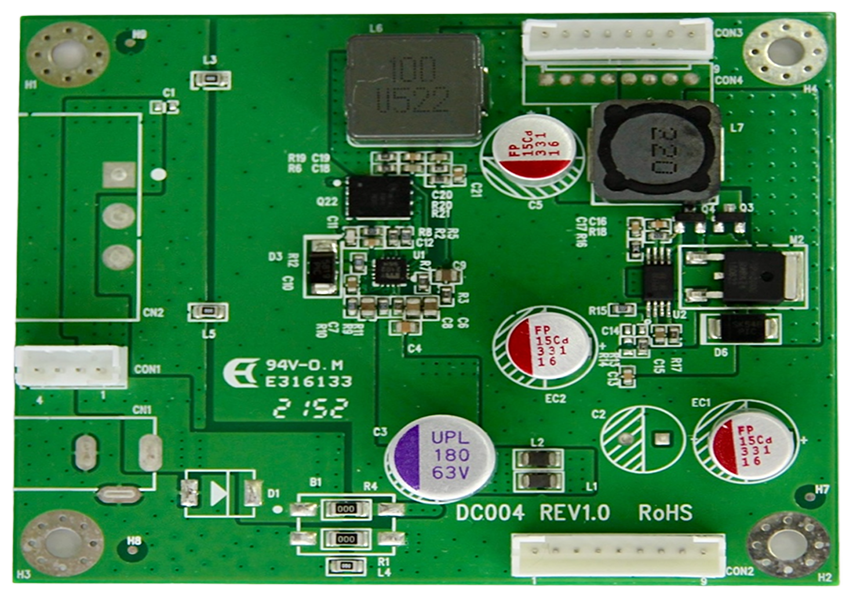

DC004
Model No.: DC004
Part No.: CPCB-DC004-2S--
Main Feature:
◎ 4A /8V or 3A /12V output load current , total output power 36W max.
◎ Low current consumption, Standby-by mode 1μA
◎ Thermal shutdown and current limit protection
◎ High speed oscillator frequency: 600KHz max
◎ Wide Input voltage range: 9V~35V ± 10%
◎ Operating temperature : -12℃~70℃
◎ Excellent line and load regulation
◎ Output voltage 8V & 12V ± 5%
◎ RoHS compliant
◎ High efficiency
Part No.: CPCB-DC004-2S--
Main Feature:
◎ 4A /8V or 3A /12V output load current , total output power 36W max.
◎ Low current consumption, Standby-by mode 1μA
◎ Thermal shutdown and current limit protection
◎ High speed oscillator frequency: 600KHz max
◎ Wide Input voltage range: 9V~35V ± 10%
◎ Operating temperature : -12℃~70℃
◎ Excellent line and load regulation
◎ Output voltage 8V & 12V ± 5%
◎ RoHS compliant
◎ High efficiency
Product Content
Specification:
Please go to "SERVICE" >"Catalogue" >"AD BoarD Peripheral" to
down load the detail specification sheet or find the sales on
"CONTACT" to get more specification and service.

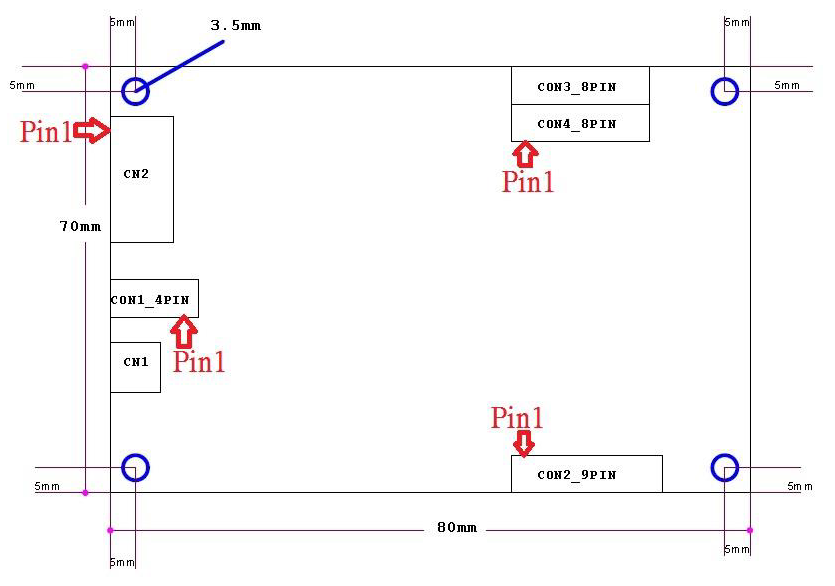

Board Dimension :80mm*70mm
