Product

Model No.: VT121
Main Features:

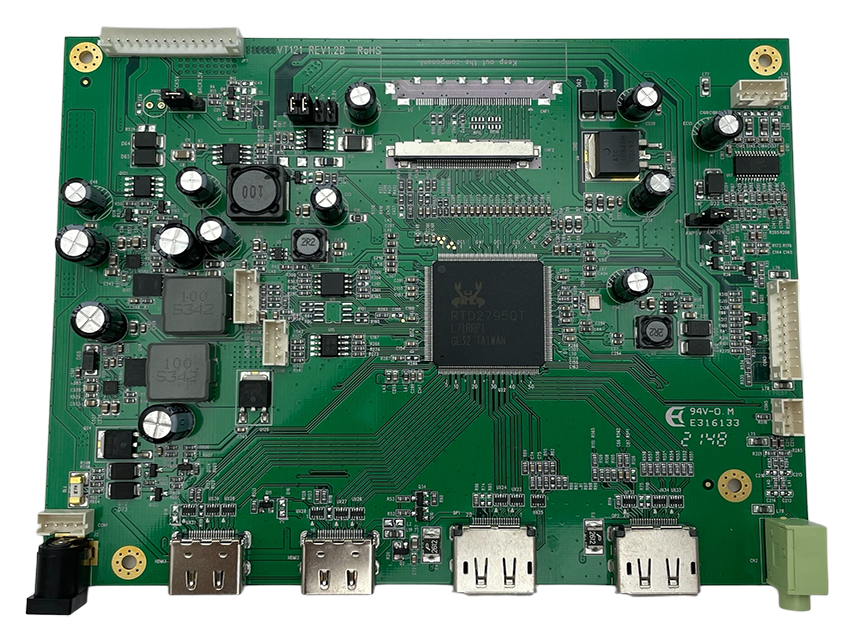

◎ The A/D Board is designed to connect with 4K x 2K TFT LCD panel,
using Realtek chip including Color Engine and Audio DAC which can
have high quality of picture and sound.
◎ It supports 8 pairs V-by-one and eDP interface for 4Kx2K Panel.
◎ The A/D Board Offers HDMI and DisplayPort to support input signal
up to 4Kx2K 60Hz.
◎ In HDMI mode , the board supports color depth of 6-Bit , 8-bit , 10 bit
and 12-bit.
◎ In DisplayPort mode , three link layer speed HBR2(5.4GHz),HBR
(2.7GHz) ,RBR(1.6GHz) are supported
◎ Support Picture Rotate function.
◎ Built in10Wx2 audio amp.(Optional)
◎ Wide input voltage range 12V ~ 24V
◎ Operating temperature range: 0℃ to +50℃
◎ Storage temperature range: -40℃ to +60℃
◎ Operating humidity range : 0% to 80% (Non-condensing)
◎ Storage humidity range : 0% to 80% (Non-condensing)
