產品系列

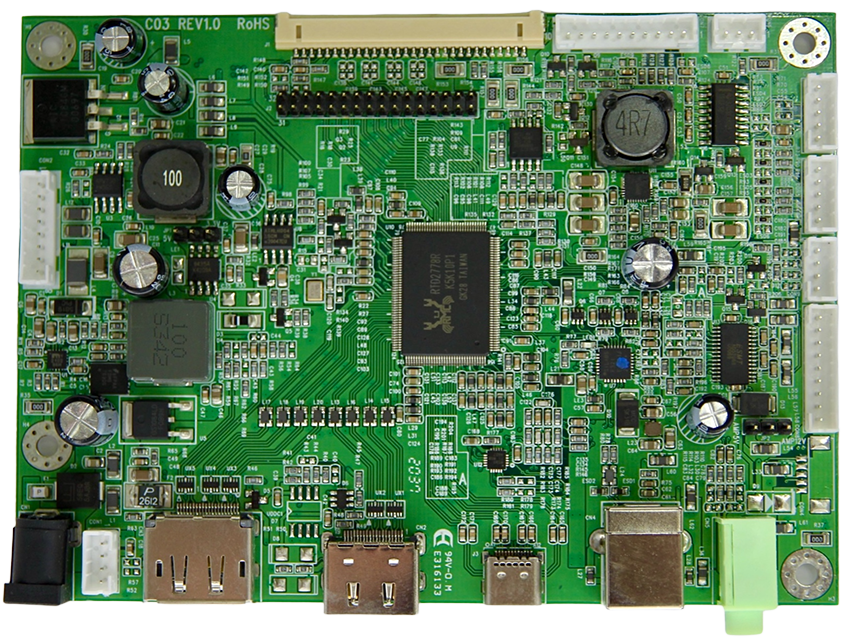

型號: C03
零件號碼: C03--778APH--
主要功能:
◎ Support vertical refresh rate up to 75Hz for VGA~SXGA+ (1400X1050) and
60Hz for higher resolution of VESA standard timing
◎ Supply single pixel(24bits) or dual pixel(48bits) digital RGB output
◎ Support USB output : USB2.0 + Resistor touch control (Optional)
◎ Support Power Delivery (PD) source mode : 5V/3A and 9V/3A
◎ Compatible with VGA up to Full HD (1920x1200) LCD panel
◎ Support stereo audio amplifier function: 2Wx2 or 10Wx2
◎ Support USB (Type C) input : DP+USB2.0
◎ Operating temperature : 0 °C to +50 °C
◎ Storage temperature : -40 °C to +60 °C
◎ Support Display Port input
◎ Support RS232 (Optional)
◎ Support HDMI input
◎ RoHS compliant
◎ DC 12V input
