Product
KC46D4
Model No. : KC46D4
Part No. : C46D4525AIP--
Main Feature:
◎ Auto detection of separate Sync. signal and composite Sync. signal of VGA
◎ Support VGA analog standard input signal (15-pin D-Sub connectors)
◎ Support vertical refresh rate up to 75Hz for VGA~SXGA+ (1400X1050) and
60Hz for higher resolution of VESA standard timing
◎ Supply single pixel(24bits) or dual pixel(48bits)digital RGB output
◎ Compatible with VGA up to Full HD (1920x1200) LCD panel
◎ Operating temperature : -30 °C to +80 °C
◎ Storage temperature : -40 °C to +80 °C
◎ Support Display Port input (DP 1.2)
◎ Support audio amplifier function.
◎ Support DVI input (DVI 1.0)
◎ Support RS232 (Optional)
◎ RoHS compliant
◎ DC 12V input
Part No. : C46D4525AIP--
Main Feature:
◎ Auto detection of separate Sync. signal and composite Sync. signal of VGA
◎ Support VGA analog standard input signal (15-pin D-Sub connectors)
◎ Support vertical refresh rate up to 75Hz for VGA~SXGA+ (1400X1050) and
60Hz for higher resolution of VESA standard timing
◎ Supply single pixel(24bits) or dual pixel(48bits)digital RGB output
◎ Compatible with VGA up to Full HD (1920x1200) LCD panel
◎ Operating temperature : -30 °C to +80 °C
◎ Storage temperature : -40 °C to +80 °C
◎ Support Display Port input (DP 1.2)
◎ Support audio amplifier function.
◎ Support DVI input (DVI 1.0)
◎ Support RS232 (Optional)
◎ RoHS compliant
◎ DC 12V input
Product Content
Specification:
Please go to "SERVICE" >"Catalogue" >"AD Board" to down load the
detail specification sheet or find the sales on "CONTACT" to get more
specification and service.

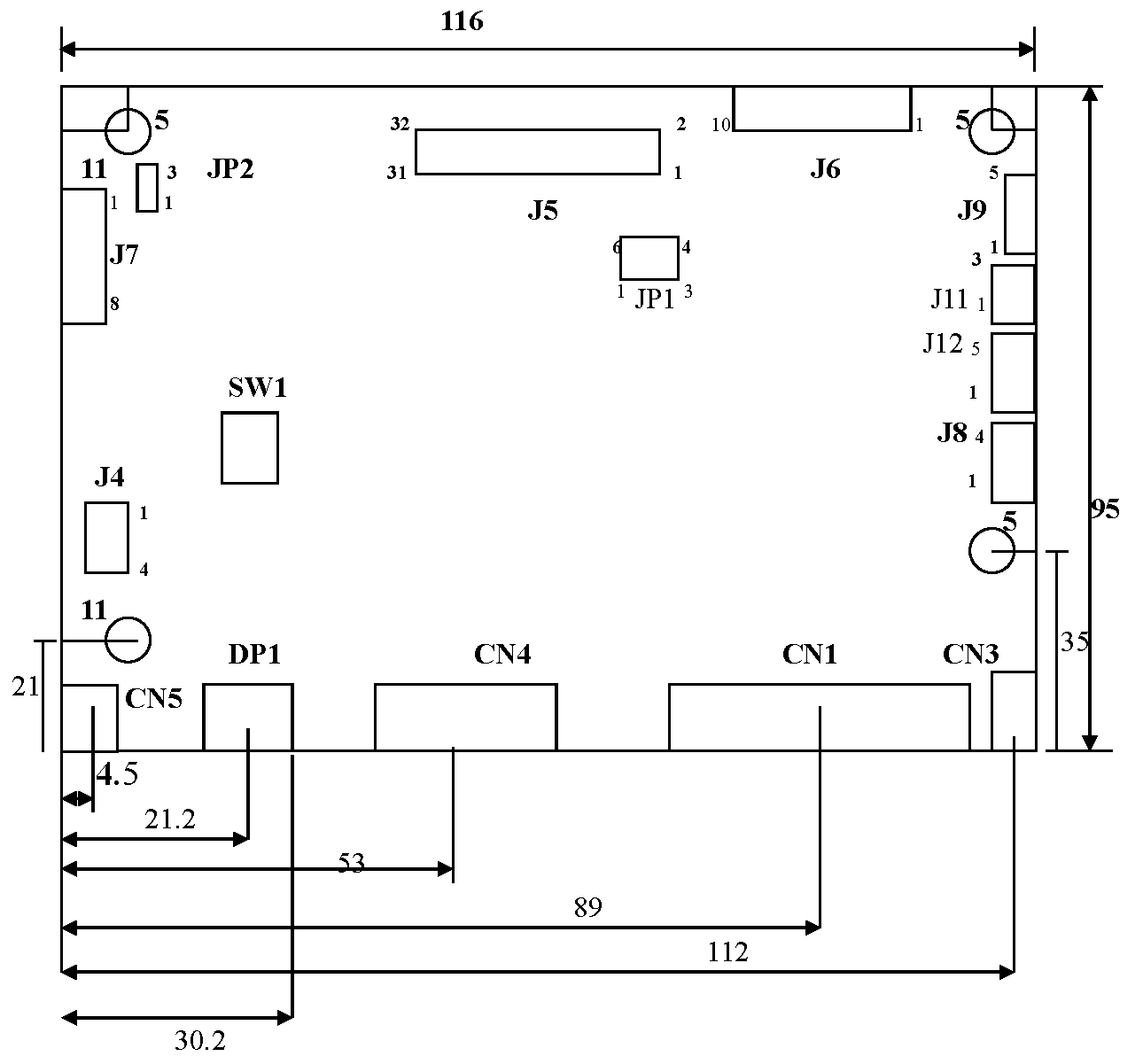

Board Dimension : 116(W) x 95(H) mm
