LCD Display Module
Model:C03
This LCD display module supports:
◎ Compatible from 640x480 up to 1920x1200 resolution TFT LCD panel.
◎ Supply single pixel(24bits)or dual pixel(48bits) digital RGB output.
◎ Support Vertical refresh rate up to 75Hz for VGA~1920x1200 and 60Hz for higher resolution of VESA Standard Timing.
◎ Support Digital Signal input (DP)
◎ Support High-Definition Multimedia Interface (HDMI) input .
◎ Support USB type C input : DP + USB 2.0 .
◎ Support Stereo Audio Amplifier function . 2Wx2 or 10Wx2 .
◎ Support Power Delivery (PD) Source mode : 5V/3A and 9V/3A .
◎ Support USB output : USB 2.0 + Resistor touch control (option).
◎ RS232 support(Option)
◎ DC 12V input .
◎ Operating temperature : 0°C to +50 °C .
◎ Storage temperature : -40 °C to +60 °C .
◎ RoHS compliant .
Add to inquiry
◎ Compatible from 640x480 up to 1920x1200 resolution TFT LCD panel.
◎ Supply single pixel(24bits)or dual pixel(48bits) digital RGB output.
◎ Support Vertical refresh rate up to 75Hz for VGA~1920x1200 and 60Hz for higher resolution of VESA Standard Timing.
◎ Support Digital Signal input (DP)
◎ Support High-Definition Multimedia Interface (HDMI) input .
◎ Support USB type C input : DP + USB 2.0 .
◎ Support Stereo Audio Amplifier function . 2Wx2 or 10Wx2 .
◎ Support Power Delivery (PD) Source mode : 5V/3A and 9V/3A .
◎ Support USB output : USB 2.0 + Resistor touch control (option).
◎ RS232 support(Option)
◎ DC 12V input .
◎ Operating temperature : 0°C to +50 °C .
◎ Storage temperature : -40 °C to +60 °C .
◎ RoHS compliant .
Specification
A/D board option
Mode | Teleview part no. | Description |
1 | C03--778APH-- | USB Type B/C+HDMI+DP, audio |
1. Support Timing Table
Mode | Resolution | V Freq.(Hz) |
1 | 640*480 | 60/75 |
2 | 720*400 | 70 |
3 | 800*600 | 60/75 |
4 | 1024*768 | 60/75 |
5 | 1280*720 | 60 |
6 | 1280*1024 | 60/75 |
7 | 1360*768 | 60 |
8 | 1440*900 | 60 |
9 | 1680*1050 | 60 |
10 | 1920*1080 | 60 |
11 | 1920*1200 | 60 |

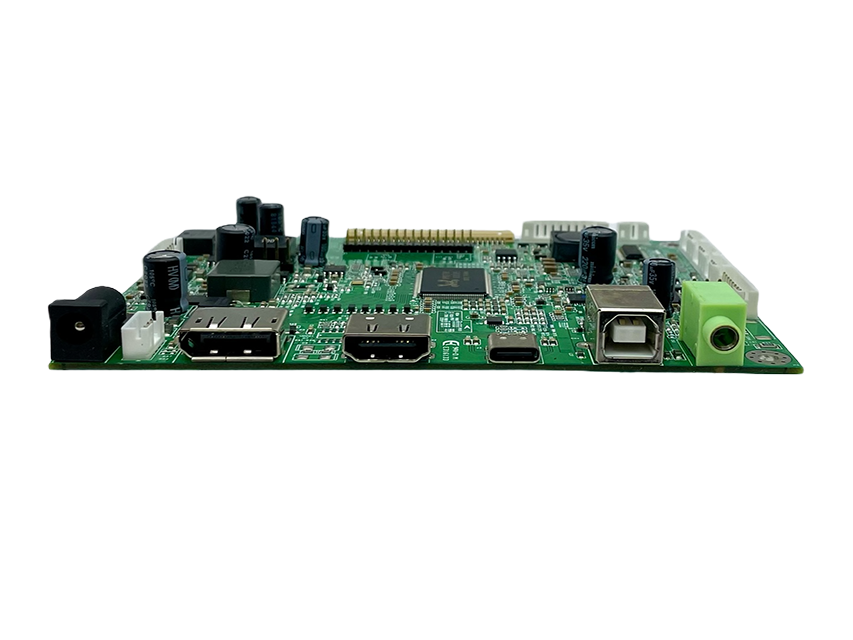

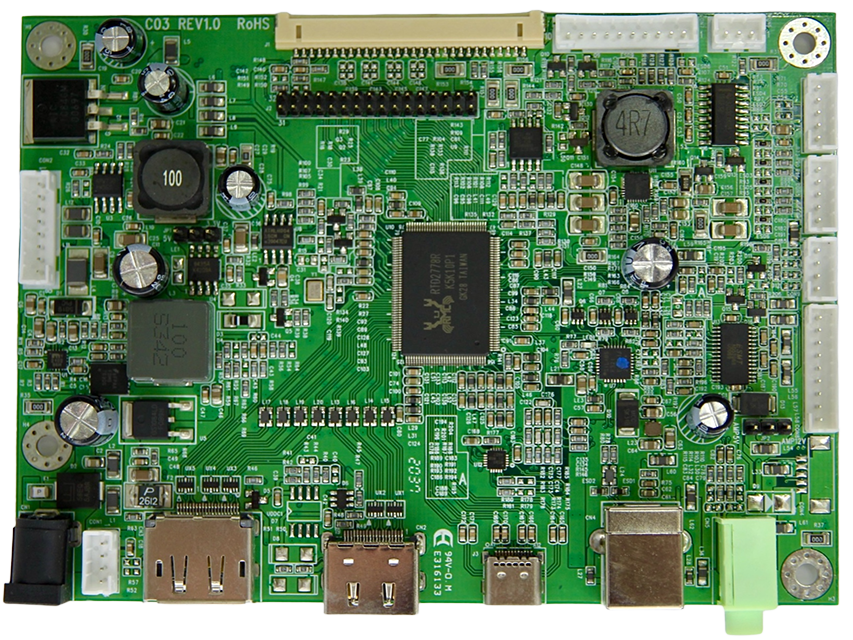

2. Connector Description
● Connector List
Connector | Function | Note |
CN1 | Power input connector | ψ2.5 |
CN2 | HDMI Connector | HDMI A Type |
CN3 | DP connector | DisplayPort |
CN4 | USB Input Connector | 4Pin.USB Type B |
CN5 | Audio Line-in Jack | ψ3.5 |
CON1 | 12V input Connector | PH 2.0mm. 4Pin.180° |
CON2 | Backlight driver connector | PH 2.0mm. 8Pin.180° |
CON3 | UART connector | PH 2.0mm. 5Pin.180° |
CON4 | USB Output Connector | PH 1.25mm.5Pin.90° |
CON5 | Resistive touch Connector | PH 2.0mm.5Pin.180° |
CON6 | IR Connector | PH 2.0mm. 3Pin.180° |
CON7 | Key board connector | PH 2.0mm.10Pin.180° |
CON8 | USB Output Connector | PH 2.0mm.9Pin.180° |
CON9 | Speaker connector | PH 2.0mm. 4Pin.180° |
J1 | LCD Panel for eDP | 1.25mm. 30Pin.90° |
J2 | LCD Panel for LVDS | PH 2.0 2*16Pin.90° |
J3 | USB Connector | 24Pin.USB Type C |
JP1 | 3.3V/5V selector for panel PH | PH 2.5mm.2x3Pin.180° |
JP2 | 5V/12V selector for AMP | PH 2.5mm.3Pin.180° |
Pin definition for connector
CN5 : Audio Line-in connector (phone jackψ3.5)
CON1: 12V input Connector (2.0 mm 4Pin DIP)
Pin | Description | Note |
1,4 | +12V | Power supply of +12Vdc |
2,3 | GND | Ground |
CON2: Backlight Driver Connector (2.0mm 8 Pin DIP)
Pin | Function | Note |
1,2 | 12V Input | Power supply of +12Vdc |
4,6 | GND | Ground |
3 | Brightness control | PWM |
5 | ON/OFF Control | 5V ON;0V OFF |
7,8 | 5V Input/Output | +5Vdc |
Note : 2.0mm 5 pin connector(Pin1~5) is used for standard 12V input
And stand alone backlight driver .
2.0mm 3 pin connector (Pin6~8) is used for 2-in-1 power supply with 5V input .
CON3:UART Connector (2.0 mm 5Pin DIP)
Pin | Description | Note |
1 | 5V | +5Vdc |
2 | Key2 | ADC Light Sensor option |
3 | Tx | UART RX |
4 | Rx | UART RX |
5 | GND | Ground |
CON4: USB Output Connector (1.25 mm 5Pin SMD) Option
Pin | Function | Note |
1 | 5V | PC USB 5V |
2 | DATA- | USB DATA- |
3 | DATA+ | USB DATA+ |
4 | GND | Ground |
5 | TOUCH | Enable/Disable (Low=Disable) |
CON5: Resistive touch Connector (2.0 mm 5Pin DIP)
Pin | Function | Note |
1 | Y-/UL | -- |
2 | SENSE | -- |
3 | Y+/UR | -- |
4 | X-/LL | -- |
5 | X+/LR | -- |
CON6: IR Connector (2.0 mm 3Pin DIP)
Pin | Function | Note |
1 | 5V | +5Vdc |
2 | IR | Interrupt input |
3 | GND | Ground |
CON7: Key Board Connector (2.0 mm 10Pin DIP)
Pin | Function | Note |
1 | SEL+(RIGHT) | Increase the value |
2 | SEL-(LEFT) | Decrease the value |
3 | AUTO | Menu Exit |
4 | MENU | Enter the main menu |
5 | POWER | Power ON/OFF |
6 | LED-G | Green LED (Power ON) |
7 | LED-R | Red LED (Power saving) |
8 | GND | Ground |
9 | N.C. | Not connect |
10 | N.C. | Not connect |
CON8: USB Output Connector (2.0 mm 9Pin DIP)
Pin | Function | Note |
1 | 5V | +5Vdc |
2 | TypeC DATA- | Billboard USB D- |
3 | TypeC DATA+ | Billboard USB D+ |
4,7 | GND | Ground |
5 | PC_USP_SSRX- | USB3 Differential Signal input |
6 | PC_USP_SSRX+ | USB3 Differential Signal input |
8 | PC_USP_SSTX- | USB3 Differential Signal output |
9 | PC_USP_SSTX+ | USB3 Differential Signal output |
CON9: Speaker Connector (2.0 mm 4Pin DIP)
Pin | Function | Note |
1 | R- | Audio Right- |
2 | R+ | Audio Right+ |
3 | L- | Audio Left- |
4 | L+ | Audio Left+ |
J1: Panel connector eDP(1.25 mm 30 Pin SMD) Option
Pin | Name | Note |
1,2 | NC | No contact |
3 | GND | Ground |
4 | TXAUXN R | Complement signal Auxiliary Channel |
5 | TXAUXP R | True signal Auxiliary Channel |
6 | GND | Ground |
7 | TX0N R | Complement signal link lane0 |
8 | TX0P R | True signal link lane0 |
9 | GND | Ground |
10 | TX1N R | Complement signal link lane1 |
11 | TX1P R | True signal link lane1 |
12 | GND | Ground |
13 | TX2N R | Complement signal link lane2 |
14 | TX2P R | True signal link lane2 |
15 | GND | Ground |
16 | TX3N R | Complement signal link lane3 |
17 | TX3P R | True signal link lane3 |
18 | GND | Ground |
19,20 | 3.3V or 5V or 12V | 3.3V/5V/12V Power supply for panel |
21 | DP_HPD | HPD Signal in |
22 | BKLT_EN | Backlight enable |
23 | BKLT_ADJ | Backlight Adjustment |
24,25 | GND | Ground |
26,27,28,29 | 12V | +12V Power supply |
30 | NC | No contact |
J2:Panel Connector LVDS (2.0 mm 32 Pin DIP)
Pin | Name ( 8 bit ) | |
1,2,3,4 | VDD | Power supply for panel |
5,6 | GND | Ground |
7 | RXEIN3- | EvenTx3- Data Pin |
8 | RXEIN3+ | EvenTx3+ Data Pin |
9 | RXEINC- | EvenTx- Clock Pin |
10 | RXEINC+ | EvenTx+ Clock Pin |
11 | RXEIN2- | EvenTx2- Data Pin |
12 | RXEIN2+ | EvenTx2+ Data Pin |
13 | RXEIN1- | EvenTx1- Data Pin |
14 | RXEIN1+ | EvenTx1+ Data Pin |
15 | RXEIN0- | EvenTx0- Data Pin |
16 | RXEIN0+ | EvenTx0+ Data Pin |
17 | RXOIN3- | OddTx3- Data Pin |
18 | RXOIN3+ | OddTx3+ Data Pin |
19 | RXOINC- | OddTx- Clock Pin |
20 | RXOINC+ | OddTx+ Clock Pin |
21 | RXOIN2- | OddTx2- Data Pin |
22 | RXOIN2+ | OddTx2+ Data Pin |
23 | RXOIN1- | OddTx1- Data Pin |
24 | RXOIN1+ | OddTx1+ Data Pin |
25 | RXOIN0- | OddTx0- Data Pin |
26 | RXOIN0+ | OddTx0+ Data Pin |
27,28,29,30 | N.C. | Not connect |
31,32 | GND | Ground |
J3: USB Input Connector (24Pin USB Type C SMD)
Pin | Functio | Note |
A1 | GND | Ground |
A2 | TypeC_TX1+ | SuperSpeed differential#1 TX + |
A3 | TypeC_TX1- | SuperSpeed differential#1 TX - |
A4 | TypeC_VBUS | VBUS |
A5 | TypeC_CC1_1 | Configuration channel |
A6 | TypeC_D+ | USB 2.0 differential position + |
A7 | TypeC_D- | USB 2.0 differential position - |
A8 | TypeC_SBU1_1 | Sideband use (SBU) |
A9 | TypeC_VBUS | VBUS |
A10 | TypeC_RX2- | SuperSpeed differential#2 RX - |
A11 | TypeC_RX2+ | SuperSpeed differential#2 RX + |
A12 | GND | Ground |
B1 | GND | Ground |
B2 | TypeC_TX2+ | SuperSpeed differential#2 TX + |
B3 | TypeC_TX2- | SuperSpeed differential#2 TX - |
B4 | TypeC_VBUS | VBUS |
B5 | TypeC_CC2_1 | Configuration channel |
B6 | TypeC_D+ | USB 2.0 differential position + |
B7 | TypeC_D- | USB 2.0 differential position - |
B8 | TypeC_SBU2_1 | Sideband use (SBU) |
B9 | TypeC_VBUS | VBUS |
B10 | TypeC_RX1- | SuperSpeed differential#1 RX - |
B11 | TypeC_RX1+ | SuperSpeed differential#1 RX + |
B12 | GND | Ground |
JP1/LE1: Panel B+ 3.3V / 5V / 12V selector (2.5 mm 3Pin DIP)
Pin | Description | Note |
1-2 | 5V | Power supply of +5dc |
2-3 | 3.3V | Power supply of +3.3Vdc |
LE1 | 12 | Power supply of +12Vdc |
JP2: Audio power selector (2.5 mm 3Pin DIP)
Pin | Description | Note |
1-2 | 5V input | 2W x 2 output |
2-3 | 12V input | 10W x 2 output |

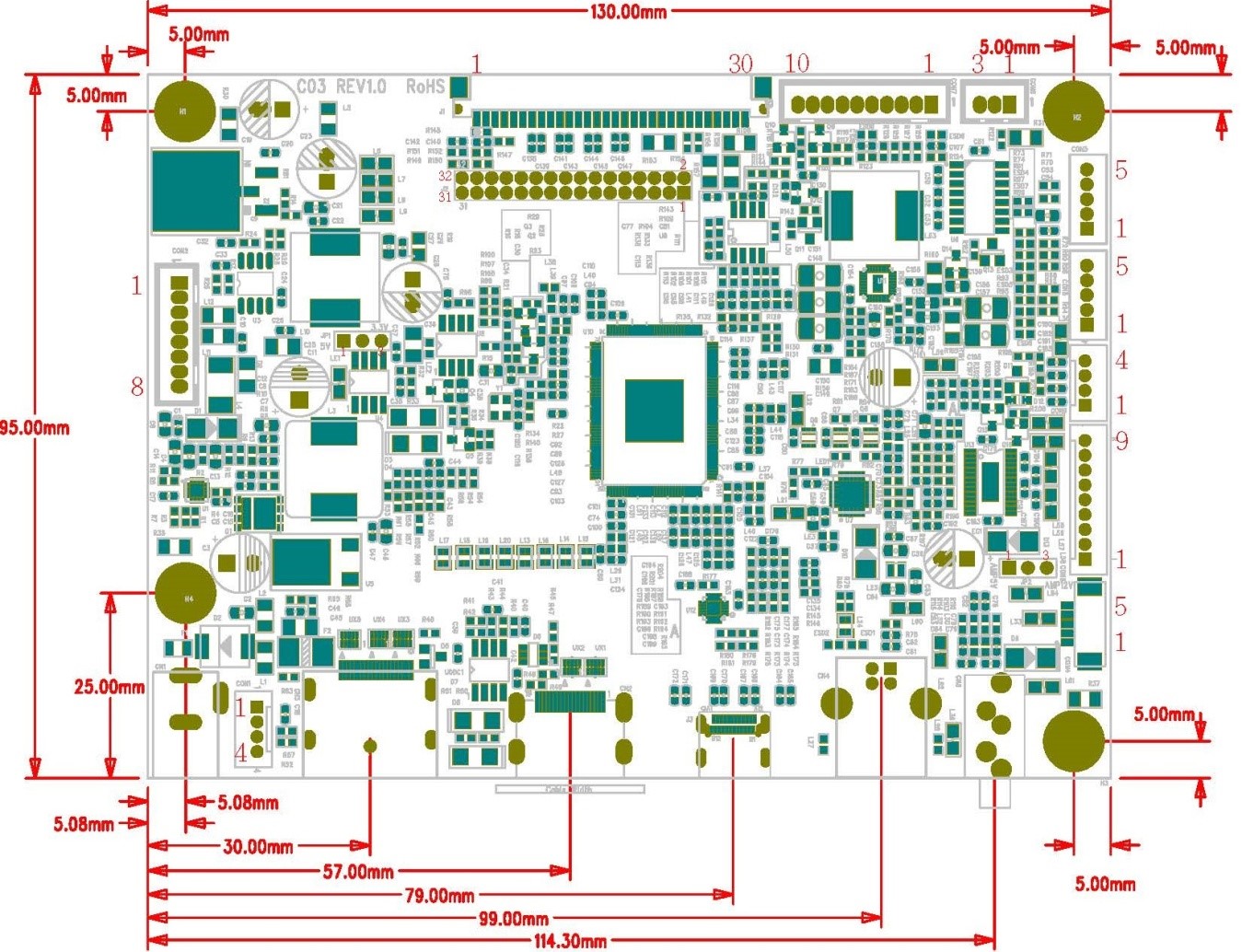

Board Dimension
