Board Keypad
Model：VT79
Features
◎ Support OSD adjustment for LCD display with easy operation through the board keypad.

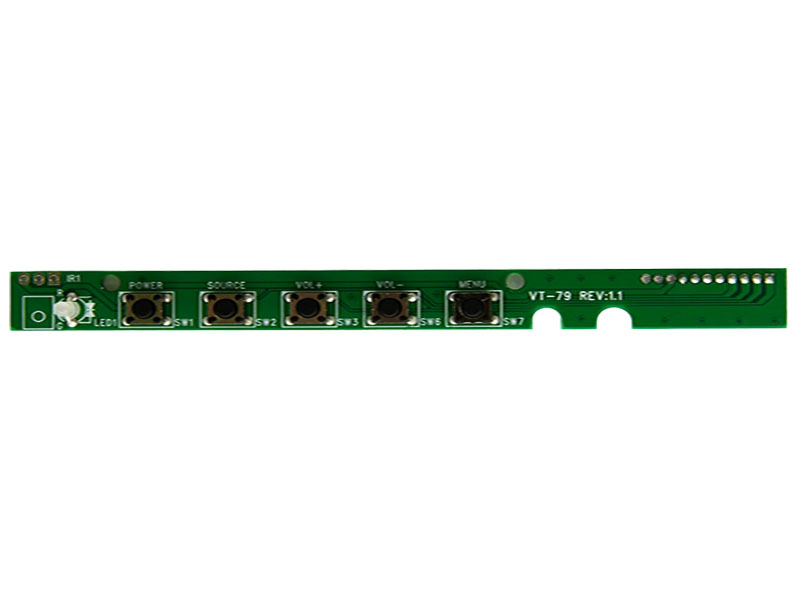

Board Overall View
◎ Key SW x5 — compact board keypad design for intuitive control.
◎ Dual color LED, Green and Yellow.
◎ IR receiver for remote control function (Optional).
Connectors Description
Download
Add to inquiry
◎ Support OSD adjustment for LCD display with easy operation through the board keypad.
Board Overall View
◎ Key SW x5 — compact board keypad design for intuitive control.
◎ Dual color LED, Green and Yellow.
◎ IR receiver for remote control function (Optional).
Connectors Description
Specification
Key pad option
| Mode | Teleview part no. | Description |
| 1 | CPCB-VT79K1-- | 5 Key+LED , 5mm |
| 2 | CPCB-VT79K3-- | 5Key+LED , 5mm +IR |
CN1 : Input connector (2.0mm , 11 Pin, DIP)--with IR function
Input connector (2.0mm , 8 Pin, DIP)---without IR function
| Pin | Function | Note |
| 1 | SEL+(RIGHT) | Increase the value |
| 2 | SEL-(LEFT) | Decrease the value |
| 3 | AUTO/EXIT | Menu Exit or VGA Auto adjusts |
| 4 | MENU | Enter the main menu |
| 5 | POWER | Power ON/OFF |
| 6 | LED-G | Green LED (Power ON) |
| 7 | LED-R | Red LED (Power saving) |
| 8 | GND | Ground |
| 9 | 5V | +5Vdc |
| 10 | IR data | Interrupt input |
| 11 | GND | Ground |
Key SW Height
Standard : 5.0 mm above the PCB surface , PCB thickness 1.6m
Optyions : 7.0 mm , 9.5 mm , 13 mm .
LED Height
6.5 mm above the PCB surface , PCB thickness 1.6mm
IR receiver Height
5.2 mm above the PCB surface , PCB thickness 1.6mm
CN1 Height (Reverse side )
5.0 mm above the PCB surface , PCB thickness 1.6mm

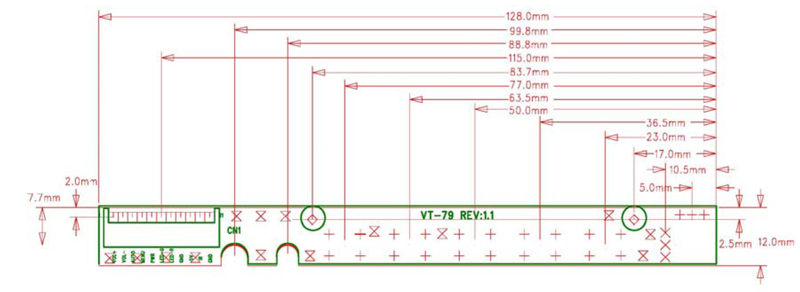

Board Dimension
Board Dimension :128mm x 12 mm
Screw holes*2:3mm
