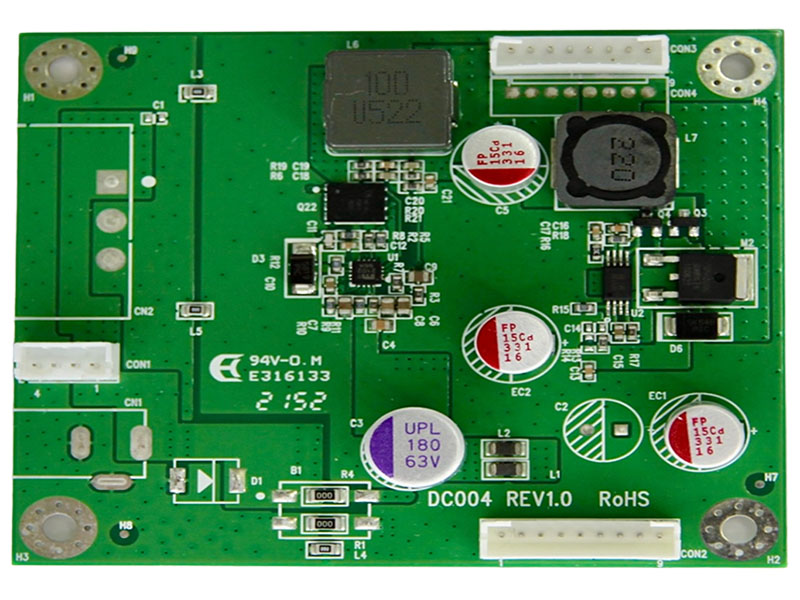

DC Power Module
Model：DC004
Features
◎ CWide Input Voltage Range: 9V~35V ±10%
◎ Output Voltage 8V & 12V ±5%
◎ 4A / 8V or 3A / 12V output load current, total output power 36W max
◎ Excellent line and load regulation
◎ High speed oscillator frequency: 600KHz max
◎ Low current consumption, Standby Mode 1μA
◎ High efficiency
◎ Thermal shutdown and current limit protection
◎ RoHS Compliant, 100% Pb & Halogen Free
This DC power module is designed to deliver stable and reliable output voltages in demanding environments. As a compact DC power supply module, it ensures high efficiency and excellent protection features, making it ideal for industrial, automotive, and embedded applications.
Download
Add to inquiry
◎ CWide Input Voltage Range: 9V~35V ±10%
◎ Output Voltage 8V & 12V ±5%
◎ 4A / 8V or 3A / 12V output load current, total output power 36W max
◎ Excellent line and load regulation
◎ High speed oscillator frequency: 600KHz max
◎ Low current consumption, Standby Mode 1μA
◎ High efficiency
◎ Thermal shutdown and current limit protection
◎ RoHS Compliant, 100% Pb & Halogen Free
This DC power module is designed to deliver stable and reliable output voltages in demanding environments. As a compact DC power supply module, it ensures high efficiency and excellent protection features, making it ideal for industrial, automotive, and embedded applications.
Specification
Converter board option
| Mode | Teleview part no. | Description |
| 1 | CPCB-DC004-2S | Wafer, No Phoenix / DC jack |
| 2 | CPCB-DC004-3S | Wafer & DC jack, No Phoenix |
1. Electrical Characteristics
| Item | Parameter | Conditions | MIN | TYP | MAX |
| 1 | Output Voltage |
Vin 24V , 0.2A≦Load≦3A |
11.4V | 12V | 12.6V |
| 2 | Efficiency | Vin 24V , Load 3A/12V |
90% | ||
| 3 | Osc. Frequency |
TJ=-40 ºC to 125 ºC |
200KHz | 200KHz | 600KHz |
2. Operating / Storage temperature
| Item | Parameter | Value |
| 1 | Operating | -20℃~70℃ |
| 2 | Storage | -30℃~70℃ |
3.Connector Description
● Connector List
| Connector | Function | Note |
| CN1 | Input | DC JACK 2.5ψ |
| CN2 | Input | Header with Flanges 5.08mm, 3Pin |
| CON1 | Input | PH 2.0mm, 4Pin , 180° |
| CON2 | Output | PH 2.0mm, 9Pin , 180° |
| CON3 | Output | PH 2.0mm, 8Pin , 180° |
Pin definition for connector
CN1: Input Connector (2.5ψ 3Pin DIP) Option
| Pin | Function | Note |
| 1 | Input | Power supply of +9V~35V |
| 2,3 | GND | Ground |
CN2: Input Connector (5.08mm, 3Pin DIP) Option
| Pin | Function | Note |
| 1 | Input | Power supply of +9V~35V |
| 2,3 | GND | Ground |
CON1: Input Connector (2.0 mm 4Pin DIP)
| Pin | Function | Note |
| 1,2 | Input | Power supply of +9V~35V |
| 3,4 | GND | Ground |
CON2: Output Connector (2.0 mm 9Pin DIP)
| Pin | Function | Note |
| 1,2 | Output | Power supply of+9V~35V |
| 3,4,5 | GND | Ground |
| 6,7,8,9 | 12V Output | Power supply of +12V |
CON3: Output Connector (2.0 mm 8Pin DIP)
| Pin | Function | Note |
| 1,2,3,4 | Output | Power supply of +8V |
| 3,4,5 | GND | Ground |

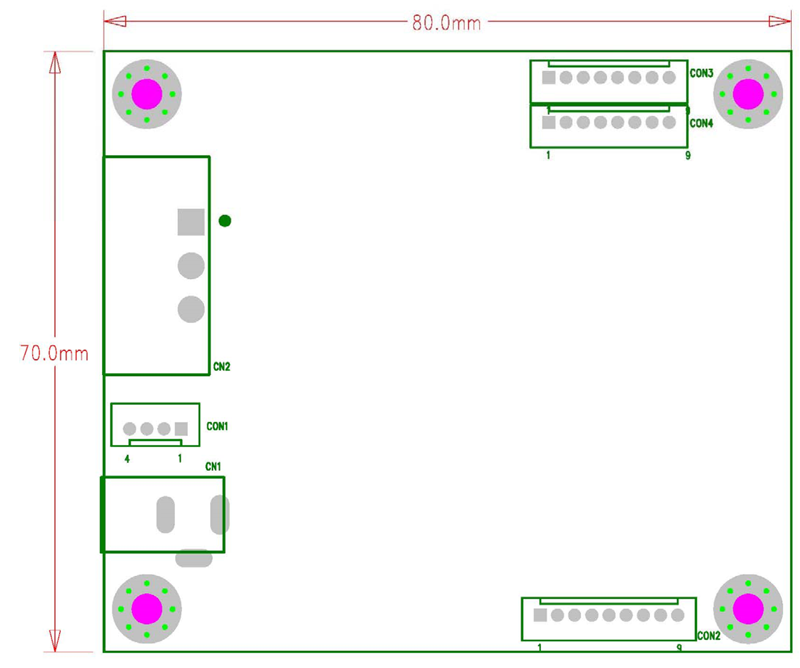

Board Dimension
Board Dimension :80mm x 70mm
Screw holes*2:3.5mm
PCB Thickness: 1.6mm
PCB Height (PCB with components):<20mm
